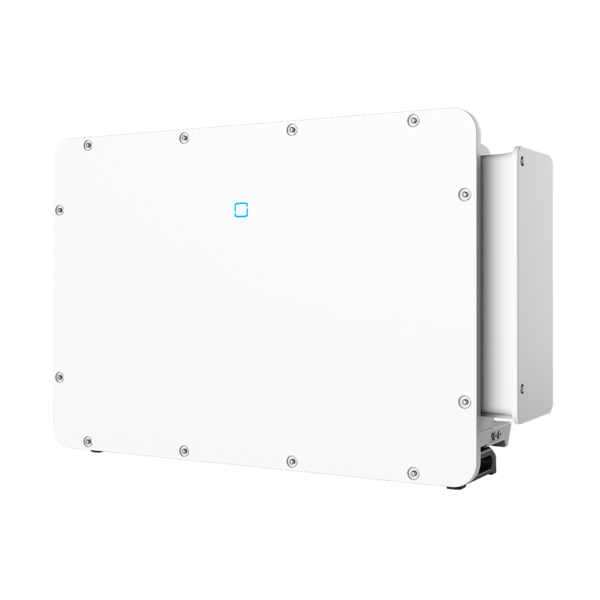

SG465HX
Lower LCOE
- Maximum efficiency not less than 99%, China’s efficiency not less than 98.5%
- AC voltage 1000V, cable transmission power increased by 25%
- Supports long-series access and 4MW+ large subarrays, reducing BOS by 2 points/W
Intelligent operations and maintenance
- MPPT-level ISO and 24H insulation testing reduce troubleshooting time
- Intelligent detection and self-cleaning of air duct health
- Intelligent IV scanning
Safe and reliable
- The whole device has IP66 protection, C5 corrosion resistance, and is suitable for all scenarios
- Mechanical switch + electronic switch redundant protection, upgraded DC safety
- Full-condition lightning protection design, unafraid of thunderstorms
- AC and DC terminal temperature detection
Photovoltaic grid
- Millisecond-level inertia and reactive power response, with active frequency and voltage support
- Voltage source MPPT tracking ensures reliable power generation under extremely weak grids
- Microsecond-level fault recording for precise fault analysis on the grid side
Input (DC)
| Maximum input voltage | 1600 V |
| Minimum input voltage / starting voltage | 500 V / 550 V |
| Rated input voltage | 1200 V |
| MPPT voltage range | 500 V – 1500 V |
| MPPT count | 6 |
| Maximum number of input strings per MPPT | 6 |
| Maximum input current | 6*105 A |
| Maximum DC short-circuit current | 6*155 A |
output (communication)
| Rated output power | 465 kW |
| Maximum output power | 511.5 kW |
| Maximum output apparent power | 511.5 kVA |
| Maximum output current | 295.3 A |
| Rated grid voltage | 3/PE, 1000 V |
| Grid voltage range | 850 V – 1150 V |
| Rated grid frequency | 50 Hz / 60 Hz |
| Grid frequency range | 45 Hz to 55 Hz / 55 Hz to 65 Hz |
| DC component | ≤ 0.5 % In |
| Power factor | > 0.99 (at rated power) |
| Power factor adjustable range | 0.8 lead – 0.8 lagging |
| Number of feed phases / Number of output phases | 3, 3 |
| Total current waveform distortion rate | ≤ 1% (rated operating condition *) |
Efficiency
| Maximum efficiency | 0.9911 |
| Chinese efficiency | 0.9858 |
Protection
| DC intelligent breaker switch | Available |
| DC reverse polarity protection | Available |
| DC insulation monitoring | Available |
| AC short-circuit protection | Available |
| AC overcurrent protection | Available |
| Leakage current protection | Available |
| Surge protection | DC Level 2 / AC Level 2 |
| Over-temperature protection for AC/DC terminals | Available |
Communication
| Display | LED indicator + APP |
| MPLC | Support |
| USB | Support |
General parameters
| Dimensions (Width * Height * Depth) | 1190mm*797mm*406mm |
| Weight | ≤ 130 kg |
| Installation method | Wall-mounted |
| Isolation methods | No transformer |
| Protection rating | IP66 |
| Operating temperature range ** | -30 ℃ – 60 ℃ |
| Operating humidity range | 0 % – 100 % |
| Cooling method | Intelligent forced air cooling |
| Highest working altitude | 5000m (>4000m downgraded) |
| DC terminal type | CT75A-1T (AVIC) |
| AC terminal type | OT / DT crimp terminals (up to 400 mm²) |
| Meets the standards | NB / T 32004-2018，GB / T 37408-2019，GB / T 19964-2024，GB / T 29319-2024 |
