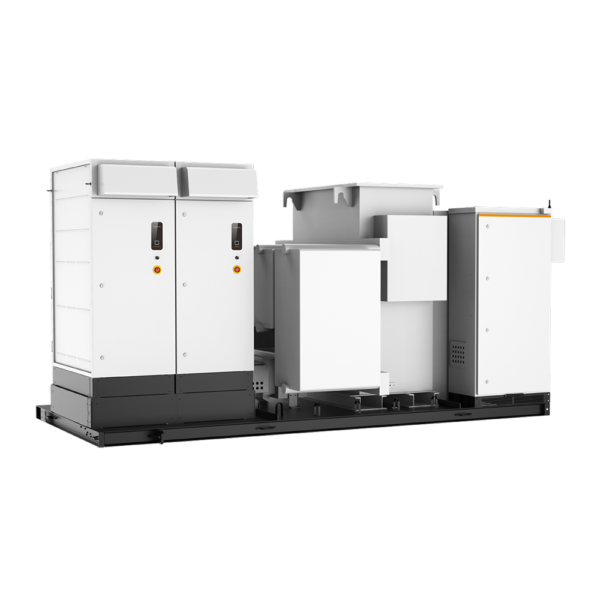

SG1100UD×2-MV
Saving investment
- “Integration” of “reversal” and “transformation,” rapid deployment, unified maintenance
- Reserved energy storage interfaces save on later retrofit costs
Flexible and convenient
- System modularization, flexible expansion of photovoltaic capacity ratio and energy storage capacity
- The device is modular and plug-and-play, requiring no professional maintenance
Safe and reliable
- Real-time DC parallel arc pulling monitoring, 40ms shutdown
- AC low-voltage full copper busbar connection, eliminating the risk of insulation failure
- Inverter + box transformer integrated factory testing for greater reliability
Supporting the power grid
- Reactive power response time < 20ms, better than national standards
- SCR=1.02, extremely weak network runs stably
- Optical storage DC coupling ensures smooth output
Input (DC)
| Maximum input voltage | 1500V |
| Minimum input voltage / starting voltage | 895 V / 905 V |
| Full-load MPPT voltage range | 895 V – 1500 V |
| MPPT count | 2 |
| Maximum DC input quantity | 10 (14 options available) |
| Maximum operating current | 2*1435 A |
| Maximum DC input short-circuit current | 2*3528 A |
Output (AC)
| Rated output power | 2200 kW |
| Maximum output power | 2530 kW |
| Maximum output apparent power | 2530 kVA |
| Rated grid voltage | 10 kV – 35 kV |
| Rated grid frequency | 50 Hz |
| Grid frequency range | 45 Hz to 55 Hz |
| Total current waveform distortion rate | < 3% (at rated power) |
| DC component | < 0.5% rated output current |
| Power factor (at rated power) | > 0.99 |
| Power factor adjustable range | 0.8 (ahead) – 0.8 (lagging) |
| Number of feed phases / Number of output phases | 3/3 |
Inverter efficiency
| Maximum efficiency | ≥99.02% |
| Chinese efficiency | ≥98.55% |
Protection
| AC/DC overvoltage protection | Available |
| AC/DC overcurrent protection | Available |
| AC/DC lightning protection protection | Available |
| Power grid monitoring / grounding fault protection | Equipped / Possessed |
| Insulation testing | Available |
| Overheat protection | Available |
Other features
| PID protection / PID repair | Equipped / Optional |
| Nighttime SVG function | Optional |
| Nighttime sleep mode | Available |
| Soft turn on and off | Available |
General parameters
| Dimensions (Width*Height*Depth) * | 4770mm*2480mm*2300mm |
| Weight * | 9500 kg |
| Inverter protection rating | IP65 |
| Auxiliary power supply | 2 kVA (up to 40 kVA optional) |
| Cooling method | Intelligent forced air cooling |
| Operating temperature range | – 35°C ~ to 60°C (> 40°C with reduced rating) |
| Operating humidity range | 0 % ~ 100 % |
| Highest working altitude | 5000 m (> 3000 m customized) |
| Communication interface | Standard: RS485, Ethernet |
