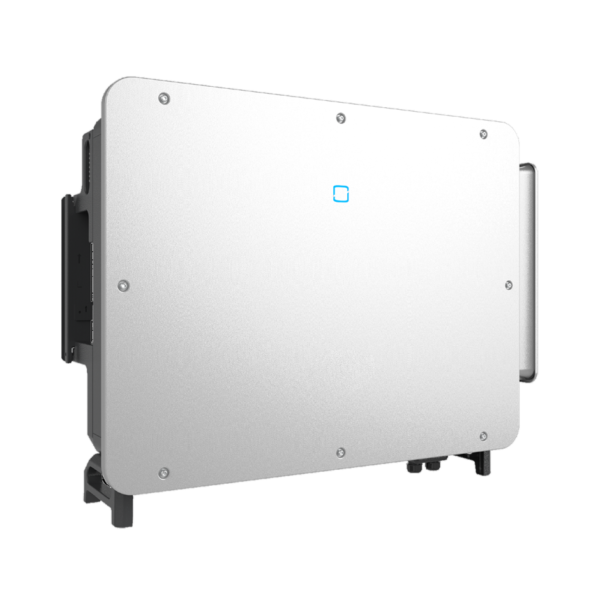

SG110CX-P2H-CN
Efficient power generation
- 9-channel MPPT design enhances power generation in complex application scenarios
- Single series input current of 20A, easily connected to 210 components
- Intelligent string power optimization technology enhances power generation in shadow scenarios
Saving investment
- AC independent drawer-style cabinet, saving over 30% of operating time
- Supports string dual integration and single access, saving DC cable costs
- Supports up to 240mm² aluminum wire access, saving on AC cable costs
Safe and reliable
- Proactive diagnostics of key components ensure stable system operation
- IP66 protection, C5 corrosion resistance, suitable for various harsh environments
- Standard AC/DC secondary lightning protection
Intelligent operations and maintenance
- 10-second data refresh, faster and more precise operations
- High-precision string detection and I-V diagnostics for accurate location of abnormal strings
- Dual AC and DC power supply, 7*24 hour online monitoring and maintenance upgrades
Input (DC)
| Maximum input voltage | 1100 V |
| Minimum input voltage / starting voltage | 180 V / 200 V |
| Rated input voltage | 600 V |
| MPPT voltage range | 180 V – 1000 V |
| Maximum number of input strings per MPPT | 2 / 2 / 1 / 1 / 1 / 1 / 1 / 1 / 1 |
| Maximum input current per channel | 20 A |
| Maximum input current | 220 A ( 2 * 40 A + 7 * 20 A ) |
| MPPT count | 9 |
| Maximum allowable current at the input terminal | 30 A |
| Maximum DC short-circuit current | 275 A( 50 A/50 A/25 A/25 A/25A/25A/25A/25A/25A) |
output (communication)
| Rated output power | 110 kW |
| Maximum output power | 121 kW |
| Maximum output apparent power | 121 kVA |
| Maximum output current | 183.3 A |
| Rated grid voltage | 3/N/PE,230V/400V,220V/380V |
| Grid voltage range | 320 V – 480 V |
| Rated grid frequency / grid frequency range | 50 Hz / 45 Hz – 55 Hz |
| Total current waveform distortion rate | < 3% (at rated power) |
| DC component | < 0.5 % In |
| Power factor | > 0.99 (at rated power) |
| Power factor adjustable range | 0.8 ahead – 0.8 lagging |
| Number of feed phases / Number of output phases | 3/3-N-PE |
Efficiency
| Maximum efficiency | 98.60% |
| Chinese efficiency | 98% |
Protection
| DC reverse polarity protection | Available |
| AC short-circuit protection | Available |
| Leakage current protection | Available |
| Grid monitoring | Available |
| DC switch | Available |
| String detection | Available |
| Island protection | Available |
| Surge protection | DC secondary / AC secondary level |
General parameters
| Dimensions (Width * Height * Depth) | 1019mm*793mm*360mm |
| Weight* | 82 kg |
| Isolation methods | No transformer |
| Protection rating | IP66 |
| Nighttime depletion | ≤ 4 W |
| Operating temperature range | -30 ℃ – 60 ℃ |
| Operating humidity range (no condensation) | 0 % – 100 % |
| Cooling method | Intelligent air cooling |
| Maximum working altitude | 4000 m (> 3000 m downgraded) |
| Noise | < 80 dB |
| Communication | RS485 / 4G (optional) |
| DC terminal type | Evo2 compatible terminal |
| AC terminal type | OT / DT terminals (maximum 70mm² – 240mm²) |
| Meets the standards | NB / T 32004-2018、GB / T 37408-2019 |
| Grid support | ZVRT, anti-islanding, active and reactive power regulation, PF control, slow start/shutdown |
