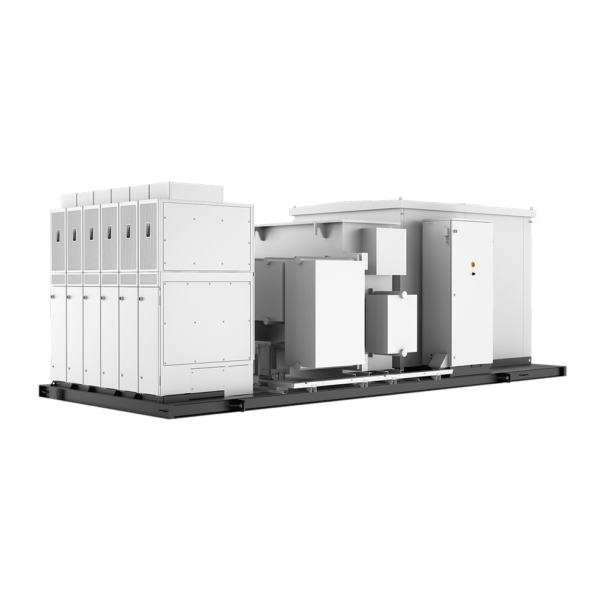

SG4800UD-MV
Intelligent operations and maintenance
- Split design, ultra-fast operation and maintenance within 1 hour
- Pioneering intelligent fault location with real-time monitoring and proactive early warning
- AI monitoring of duct health + self-cleaning, eliminating the need for manual duct maintenance
Lower LCOE
- “Integration” of “reversal” and “transformation,” rapid deployment, unified maintenance
- 4800kW large subarray, more cost-effective
- System modularization and flexible subarray capacity design
Ultimate safety
- DC parallel arc pulling protection, 40ms protection module
- Pioneering excitation fuse protection, ensuring 24-hour DC side safety
- Insulation monitoring ensures system safety
Proactively building networks
- All models come standard with photovoltaic grids and all-weather reactive voltage support
- Pioneering adaptive strong and weak grids, proactively identifying changes in the power grid
- Enhanced grid support, 20ms ultra-fast reactive power dispatch
Input (DC)
| Maximum input voltage | 1500 V |
| Starting voltage | 910 V |
| MPP voltage range at rated power | 900 V~1500 V |
| MPPT count | 6 |
| Number of input channels | 24 channels (30 optional negative ground channels) |
| Maximum input current | 6*1038 A |
| Maximum DC short-circuit current | 6*2520 A |
| Levitation and grounding | Default negative electrode grounding, optional floating ground |
output (communication)
| Rated output power | 4800 kW |
| Maximum output power | 5520 kW |
| Maximum output apparent power | 5520 kVA |
| Rated grid voltage | 10 kV / 35 kV |
| Power factor range | -0.8～0.8 |
| Operating frequency | 50 Hz( 45 Hz~55 Hz ) |
| Number of feed-in phases / number of output phases | 3/3 |
| DC component | < 0.5% rated output current |
Efficiency
| Maximum efficiency | ≥ 99.09 % |
| Chinese efficiency | ≥ 98.60 % |
Protection
| Island protection | Available |
| High and low voltage ride-through | Available |
| DC input protection | Available |
| AC output protection | Available |
| Power grid detection, array insulation impedance testing, overheat protection | Available |
| AC insulation testing | Optional |
| Nighttime SVG function | Optional |
| AC and DC lightning protection | Available |
| Temperature, humidity, and smoke detection | Available |
General data
| Dimensions (Width*Height*Depth) | 6860mm*2600mm*2950mm |
| Weight | 16 T |
| Inverter protection rating | Inverter: IP66 / Other: IP54 |
| Maximum allowable humidity | 1 |
| Power distribution | 5 kVA, with a maximum selectable 40 kVA |
| Cooling method | Intelligent forced air cooling |
| Operating environment temperature range | -35 ℃～60 ℃ |
| Humidity range in the working environment | 0 %～100 % |
| The work is allowed at elevation altitude | Huabian 2000 m (≤ 5000 m customizable) |
| Meets the standards | 中国：GB/T19964，NB/T32004-2018，CGC/GF 035-2013，CNCA/CTS0002-2014，Q/GDW 1617-2015，GB/T 32826-2016, GB/T32892-2016，GB/T 37408，IEC62109，IEC61727，IEC62116，IEC60068，IEC61683，IEC 62443-4-2 |
| Communication methods | RS485, Ethernet |
| Display method | LED indicator lights, Ethernet + WebHMI |
